Hex Drum Filter X24-series

HEX | DRUM FILTER X24-SERIES

The right choice for reliable and corrosion-free particle removal in saltwater

The HEX | Drum filter X24 is a corrosion-free water filtration system designed for saltwater aquaculture. Working with high saline systems, corrosion of steel parts is an ongoing challenge. With over 30 years of experience in production and using high precision CNC machines, we’ve created a drum filter perfectly suited for corrosive settings. It gently removes particles from the water to keep fish tanks clean and healthy. The filter is made from high-tech polymers, so it won’t corrode or rust or require lubrication, even in high-salinity conditions. It’s easy to maintain, energy-efficient, and built for long-term, reliable performance. Whether you grow salmon, barramundi, shrimp, or prawns, the X24-series keeps your water clean with particle removal 24/7.

The HEX X24-series combines the HEX concept with a direct-driven gear wheel (DDGW) system that ensures stable, low-maintenance operation 24/7. Used in more than 2.000 installations worldwide, it handles flows from 10 to 10,000+ m³/h and is available in C-, H-, and T-versions to fit different installation types. With its modular design and superior filtration efficiency (up to 90% particle removal), the HEX | Drum filter X24 is a durable solution for demanding saltwater environments.

Learn more about the unique HEX Concept

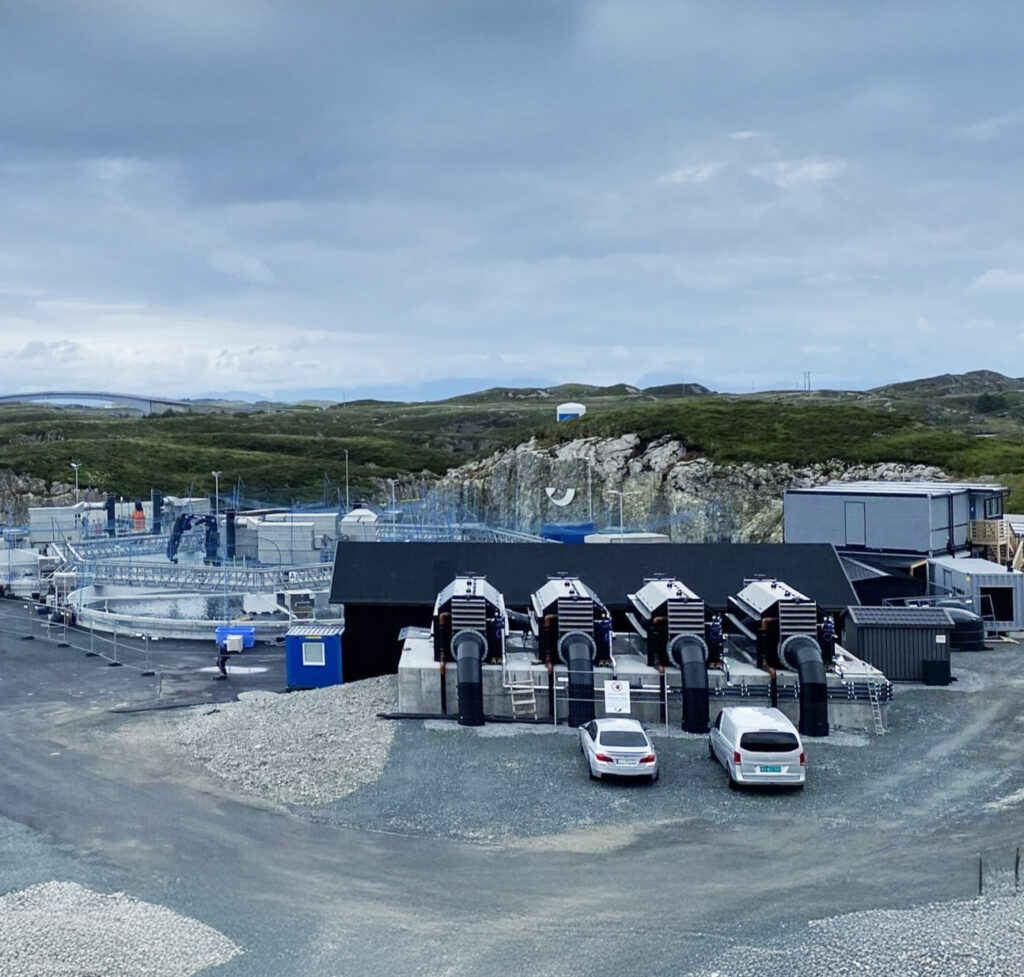

buhlandet

Your benefits with the HEX | Drum filter X24-series

Corrosion-Free Performance. The X24-series is made of high-tech polymers that ensure high longevity and withstand the harshest saltwater environments.

Hassle-free use. Experience smooth operation with minimal maintenance requirements for hassle-free use.

Reliable Drive System. No sudden breakdowns with the unique DDGW (Direct Driven Gear Wheel) system, ensuring continuous operation.

Energy Efficiency. Optimal energy efficiency saves costs and reduces environmental impact.

Superior Filtration. Removes up to 90% of particles, maintaining water clarity and quality.

  • Drum filter X-series
  • X Series Bassins
  • X Series Pump
  • X Series Aquarium

    • Technical data on HEX | Drum filter X24-series

    A construction made of high-tech polymers ensures corrosion-free equipment with high longevity while maintaining the well-known HEX quality. Very low in maintenance, this is the first Drum filter that does not require any lubrication.

    • Types: C-Version (channel installed type), H-Version (half-tank type), T-version (tank type).
    • Material: Cover, frame and tank made of black UV-resistant PE. Drum and DDGW drive made of high-tech polymers.
    • Modular sizing: Five different drum diameter sizes and modular length design fits a wide range of flow requirements.
    • Flow Rate: Handles 10 m³/h to 5.000+ m³/h depending on filter type, size & length, TSS level, salinity, and mesh size of the Filter cloth.
    • Filter media: Woven synthetic mesh (10-500 microns).
    • Drive system: Direct driven gear wheels (DDGW).
    • Backwashing: Ceramic nozzles, no moving parts.
    • Changing of Filter panels is easy – in 60 seconds this task can be done.
    Get in touch about technical questions

    C-Version

    Hex Drum Filter X24-series C-version

    The C-Version is a Drum filter with the drum mounted in an open frame to fit into a channel installation.

    H-Version

    Hex Drum Filter X24-series H-version

    The H-Version is a Drum filter with flexible mounting. The inlet can be made as open channel or pipe inlet, with a level half tank protecting the filter against excessive differential pressure.

    T-Version

    Hex Drum Filter X24-series T-version

    The T-Version has the drum mounted in a Tank with connections for fast and easy installation. The tank can have an internal bypass as required and are built according to the water flow.

    Get brochure about HEX | Drum filter X-series

    Do you have any technical questions to the HEX | Drum filter X24-series?

    Steffen Dolle

    Steffen Dolle
    Product Manager
    +4915115256873
    sd@cmaqua.dk

    Frequently asked questions about HEX | Drum filter X24-series

    The HEX | Drum filter X24-series is a high-efficiency drum filter line designed for advanced RAS farms and professional aquarium installations. It offers excellent solid removal with optimized HEX HP panel technology.

    Yes. The HEX | Drum filter X24-series is available in seawater-resistant materials, including corrosion-proof HDPE and seawater-compatible titanium components. This makes it suitable for marine aquaculture, aquariums, and hatcheries.

    Water flows through a rotating drum fitted with a fine mesh. Solids are trapped on the screen and automatically rinsed off by high-pressure nozzles during backwash.

    The HEX | Drum filter X24-series features a fully corrosion-resistant material configuration and high flows (up to 5.000 m³/h). It´s the only filter made of high-tech polymers carrying these high treatment capacities. With its maintenance free drive, the direct driven gear wheels (DDGW), sudden stops known to other drives (belt or chain drives) are no issue anymore.

    The HEX | Drum filter X24-series is commonly used by commercial aquaculture farms, public aquariums, research facilities, and RAS designers who need high capacity with reliable solid removal. It is especially suitable for marine systems with high salinity due to its seawater-resistant materials.

    Like all HEX | Drum filters, the X24-series is self-cleaning, but routine inspection is recommended. In most cases:

    • Visual checks weekly
    • Nozzle and seal inspection every 1-3 months
    • Bearing and drive system check every 6-12 months
    • Screen panel replacement depending on wear, typically every 1-3 years

    Actual frequency depends on solids load, water quality, and filter size.

    The HEX | Drum filter X24-series includes several drum sizes (0,4 to 2 meters in diameter and 0,4 to 8 meters in length) and three different design versions: The open channel, the half-tank and the full tank version. It´s available in two material configurations, one for fresh- & saltwater and one for tropical saltwater which includes an upgrade of all steel parts which are in direct contact with the water to Titanium. Further options include different screen mesh sizes, flexible inlet/outlet layouts, flexible tank designs and passive internal and external overflow boxes/wingwalls.

    Proper sizing is based on:

    • Water flow rate (m³/h)
    • Total suspended solids (TSS)
    • Mesh opening size (microns)
    • Required hydraulic loading rate
    • Species and production density
    • Freshwater vs. seawater application

    Choosing the right model ensures stable filtration performance and protects downstream components like biofilters.

    Standard mesh sizes range from 10 to 150 microns with polyester mesh and 25 to 500 microns with stainless-steel mesh, depending on solids load and filtration goals.
